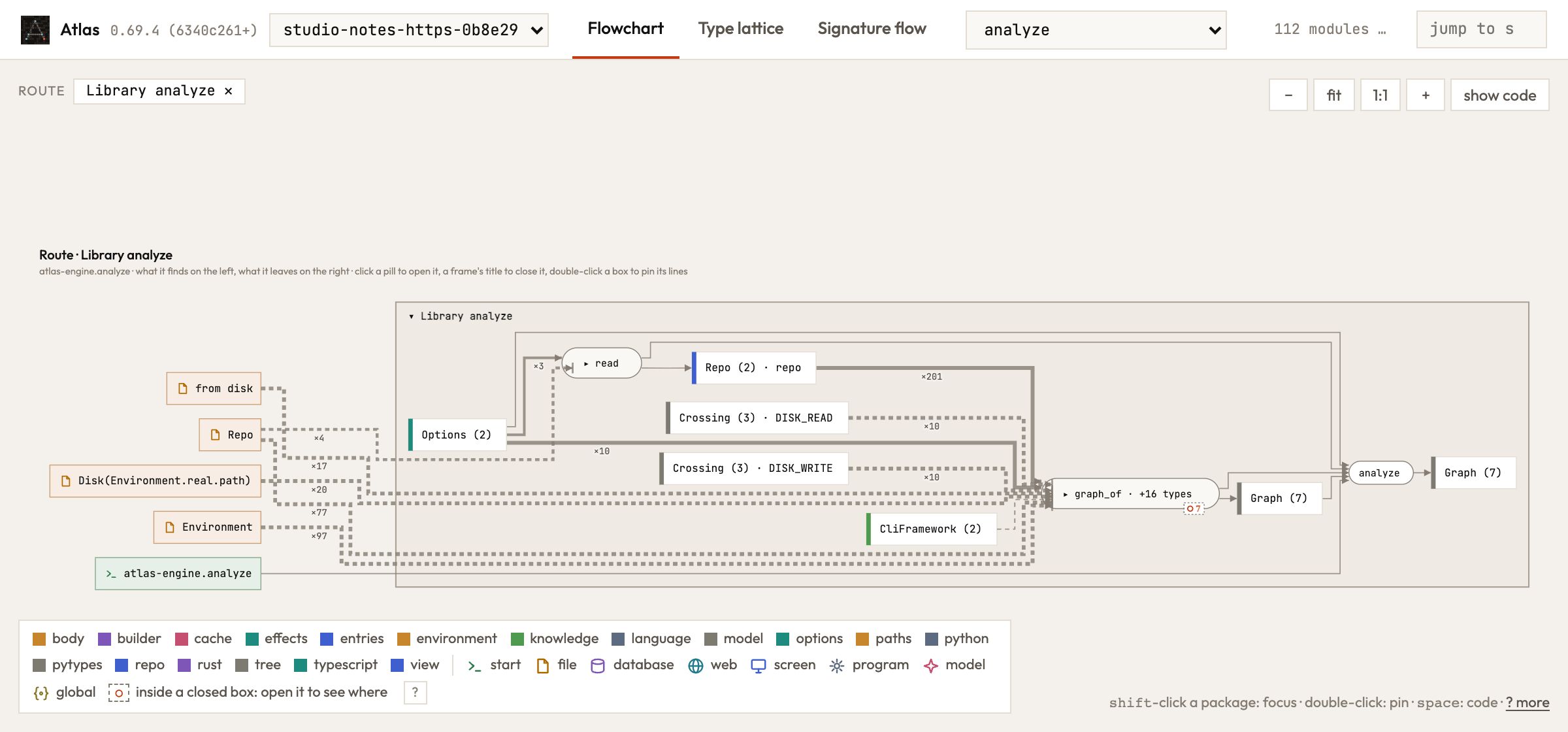

# Atlas — the guide How to read the picture, what Atlas reads, and the commands. The [README](../../README.md) says what Atlas is for; [principles.md](principles.md) what it asks of code; [design.md](design.md) how it is built. ## Reading the picture Here is Atlas looking at itself: the route `analyze`, which is what Atlas does when it reads a repository. Atlas's Flowchart of its own analyze route Read it from left to right: - **On the left** are the places whose content the route finds and uses, each folded under the type that keeps it: `Repo`, the repository's files and the manifests by which it finds the repository's parts, and `Environment`, where the libraries the code calls are kept. A click opens a type into its files. The green `>_` box is where the route starts. - **In the middle** are the steps. A rounded pill is a function. A box with a coloured bar is a value of a type in memory: `Options`, `Repo`, `Graph`. Arrows run in call order. - **On the right** is what the route leaves: the places it writes, and those it reads only to check or count what it wrote there. A place one step writes and a later step reads stands between the two, inside the step that runs both, as the value between two arrows does. A place the route uses and also changes stands twice, `from X ⇄` on the left and `into X ⇄` on the right; ⇄ goes from the one to the other. A line marked `?` goes to a place the code does not say which way it uses (a query on a bare database session), which stands between the steps. Making a place's shape, a folder for a file or a table's schema, is part of what is written or read there. A database opened on a file (`duckdb.connect(path)`, `Connection::open(path)`) is that file's: the folder made for it is the database's, and no place of its own. - **A dashed frame is a choice.** Its title says what decides each branch, as the code writes it, each in the branch's colour: `one of ● mode == "train" ● otherwise`. A step that runs only when a condition holds stands in a frame of its own, `only when not raw.exists()`: the route follows it in principle and skips it when the condition does not hold. - **Read it as a sentence:** *read* the repository into a `Repo`, and make its `graph_of` with the `Options` of the reading. That is Atlas's whole job, and the code says it in two calls. - **A solid line is what a step itself takes, a dashed line what a closed pill reaches inside.** `read` lists the files through `Repo.read`, and finds the project of a package named on its own; `graph_of` takes no file, but the readers inside it ask the `Repo` for a file's text, which is read from disk the first time it is asked for. - **`Options (2)`, `Repo (2)` and `Graph (7)` are families**: a type and the types that belong to it or that it holds, folded into one box. Click one to open it. A config opens the same way into what it holds (`folders: Folders`). Inside `graph_of`, `parse · one of 3` is a choice: the same call goes to the Python, the Rust or the TypeScript reader. - **A number `×n` on a line** is n lines of one channel between the same two boxes, drawn as one; opening a box splits it into the lines. **`+16 types` on a pill** counts the values that only that step takes and nothing else touches; opening the pill draws them, each on the step that takes it. - **Click any pill** to open it into its own steps, and **show code** to see its source. - **A step is a call.** A function the route calls twice is two steps, and a method called on a subclass's value is that subclass's (`ComparePlot.plot`); one the call names, through a class or `super()`, keeps its own class's name (`Cached.read`). Values are drawn by the names the code holds them by (`Graph · g`, `DataFrame · data`), and a step that changes a value hands it on under the same name. A library operation Atlas does not read is a step in italics where the code names its result (`to_numpy`), or where it changes the container it is called on (`rows.append(row)` hands on `rows`). In a notebook, a figure is drawn on the screen and named by what holds it: a method that keeps its figure in the value it runs on draws, with every other step on that value, on the value's one figure (`Figure 1 · Chart · chart`); any other call that makes a figure makes its own (`Figure 2 · Chart.line`). A value that is set to hold what another holds (`other.fig = self.fig`) draws on the other's figure, where the figure it would make is made only when the field that keeps it holds none (`if self.ax is None:`); one made under a test of another field is a figure of its own. A value whose class keeps two figures in fields of its own holds two, each named by the first field that keeps it (`Fit · fit.res_fig`). A chart set into a board's part (`self.left = left`) is that chart there: the board draws on the figure the chart holds, named where it was made. - **Files fold into their folders** once a picture holds more than a column's worth: `File(artefacts/) · 8` opens into what is in it with a click. - **Shift-click a package** in the overview to focus on it: the picture keeps the packages in focus, the types that cross between them and the places they touch, and joins the rest of the code by counted arrows on either side. Click the rest to open it into the packages that hand the focus data or take data from it, and click one of those to add it to the focus. The state bar names the packages around the focus, the most exchanged first, to add with one click. - **A vermilion dot in a corner is a finding** of `atlas check` (below) about that box, pill or route: hover the dot for what Atlas sees there and the question it asks. The dot sits inside its box, so findings move no box and no line. Atlas's own picture has none. - **Double-click a box** to pin its lines, to study or compare what it connects. - **Jump to symbol** opens what lies above the symbol and nothing beside it, and centres on it: in a route, the steps that call it; in the overview, its part and package. A symbol the route does not reach is shown in the first route that does. **close all ✕** at the end of the state bar closes everything opened and lets go of what is pinned, and keeps the route and the focus. - **Space over a box** shows its details and code over the picture while the code panel is closed; space, Esc or a click on the picture puts them away, and **pin** keeps the panel open beside the picture. - **Press `?`** in the page for every key and click on one card. The same route as text, with its steps in call order, is the MCP tool `route` (see below). ## Use ```bash atlas serve # the repository you are in, as a page to work in with your agent atlas view # the same picture as one HTML file; opens in your browser atlas view ../api ../web # two repositories as parts of one picture atlas view notebooks/explore.ipynb # one file, with its project, opened on its route atlas view https://github.com/o/r/tree/main/src/pkg # one folder of a repository, from its URL atlas check # where the code and the design principles disagree atlas revelation # the sketch code kept in the tree, and what is left to build atlas changes # what your edits did to the routes, their places and the findings atlas changes v1..main # what one revision did against another atlas history # the history in your browser: pick two commits, see them as one picture atlas --help ``` `atlas serve` is the page to work in (see Serve, below). `atlas view` writes the same page as a single HTML file and opens it, to keep, to send, or for a script or an agent to make. No server runs and your code stays on your machine. The file goes to `.atlas/` at the top of the git repository (`--out` names another place), where you and an agent working there both find it; the folder ignores itself, so git never sees it. `atlas analyze` writes its `graph.json` there too. The page fetches only its drawing libraries (d3, elk, highlight.js) from a CDN. It has three views. The **Flowchart** is the one to start with. Type lattice and Signature flow are earlier experiments. The header names the build that drew the page, as `atlas --version` does: `0.4.0 (b0ead14)`. The minor number goes up when what Atlas reads or draws changes, the patch number for a fix. Atlas reads: - **Python**: the packages `pyproject.toml` names (Hatch's, setuptools' or Poetry's `packages`, else the project's name) and every other package beside them, and the project's scripts and notebooks at any depth (`.py` and `.ipynb` outside the packages, its tests and what git ignores; a project of only scripts and notebooks needs no package, and a file you name is read even where git ignores it), with its types from [ty](https://docs.astral.sh/ty/). The library modules its code calls are read from its environment too, so a library's own steps can be opened in a route; `--libraries 2` reads one step further into those libraries, `--libraries 0` not at all. Libraries with compiled code and the ones Atlas already knows (pandas, requests, torch, …) stay closed; - **Rust**, including workspaces; the crates its code calls are read where Cargo keeps them (a path dependency, or the version `Cargo.lock` names in Cargo's registry sources), never fetched; - **TypeScript and TSX**: React components, server routes (Hono, Express, Fastify), TanStack routes and server functions, `tsconfig` paths; the packages its code calls are read from `node_modules`, from what each package exports as code. In every language a library is drawn as far as your code reaches it: the functions your calls go into, each round of `--libraries` one call further, with the types they take and give. A repository can hold several parts: a Python API and a TypeScript app, the crates of a workspace, the members of a uv workspace. Atlas finds every `Cargo.toml`, `pyproject.toml` and `package.json` itself, at any depth, and reads each part in its own language. The overview then shows each part as one step, from what it reads to what it writes. Where one part names a route another part serves (the app asks for `/api/items/{id}`, a FastAPI app mounted at `/api` serves `/items/{id}`), the two meet in that part's `HTTP`. Click a part to open it; **Only *part*** in the menu keeps to one. A part opens into its packages, each as one step from what its own code reads to what it writes. Between packages stand the types that cross them: data one package makes and another takes. A sink or a repository is not drawn as a type there: it is a door to its database, and the database is drawn. A dotted line joins a package to one it calls. A package opens into its subpackages, and a module into its routes and the functions other packages call in it. This overview stands even when Atlas finds no entry points. Atlas reads Python's types through ty, Astral's type checker, with the project's own environment: the one `[tool.ty.environment]` in `pyproject.toml` names, else the project's `.venv`. A venv that is active in your shell is not the project's and is not read. Where ty does not know a type, Atlas does not guess, so the picture is as precise as the code's annotations. It sees best when: - the environment is synced (`uv sync`), so that libraries have types. Without one, Atlas still knows a call to `requests.get`, but not what the value it gives back is; - every parameter and every return is annotated. Ruff's `ANN` rules ask for both: ```toml [tool.ruff.lint] extend-select = ["ANN"] ``` - a variable is annotated where its value says nothing: an empty container (`nodes: list[Node] = []`) or `None` to begin with (`self.conn: Connection | None = None`). ty infers the rest. Rust says most of this itself, since every signature is typed. Atlas follows a value through `if let`, `let .. else`, a `match` arm and `Ok(..)` or `Some(..)`; a method called on what a call gives (`Trend::new(settings).save(..)`) is a step on that type; a field of clap's derived options holds the `default_value` its attribute declares; and a name a module takes from a single library glob (`use plotters::prelude::*`) is that library's. In TypeScript, what `parseArgs` gives for an option holds its `default:`, and an object literal declared as one of the program's types (`const settings: Settings = {..}`) is a step that makes that value. `atlas check` asks for a return annotation where callers use what a function gives back. Entry points come from the code itself. Atlas finds: - the programs and plugins a `pyproject.toml` declares (`[project.scripts]`, `[project.gui-scripts]`, `[project.entry-points]`, `[tool.poetry.scripts]`), `package.json` `bin` and scripts that run a file of the package, and a Rust binary's `main`; - commands (`@app.command` from click or typer, by the name that framework gives it); - web routes (`@app.get("/…")` and `@app.route("/…", methods=[…])` from FastAPI or Flask, Litestar's `@get("/…")`, `app.get("/…", handler)` as in Hono and Express, each at the full path of the routers it is mounted on, and TanStack file routes); - MCP tools, Makefile targets, scripts, notebooks and tests; - what a library exports: at its root (in TypeScript the module `package.json` points to), and in Rust also through `pub mod` and `pub use`. A command or script shows what you hand it on the command line, as its usage line: `$ sunspots --raw --figure --months`, from typer's parameters, click's decorators, clap's fields, the keys of `parseArgs`' options or argparse's `add_argument`. The step that parses the command line (`Cli::parse()`, `parseArgs(..)`, `parser.parse_args()`) belongs to that entry: the route's steps take what it gives straight from the entry, and clicking the entry shows the parse. ## Check: the picture as a list of questions `atlas check` reads the same graph and lists where the code and eleven design principles disagree. Each finding ends in a question for the author. Atlas coaches; it does not fix. The questions are grouped by principle, and the reason they share is said once, above them. Below them a table counts the questions of each principle in each part. `--json` gives the findings as data. | Principle | In one line | | --- | --- | | `doors` | A package names its doors, and each door says what goes in and what comes out. | | `sums` | A sum type is unwrapped where it arises. | | `overrides` | An override keeps the promise of its base. | | `places` | Library code does not decide where data lives. | | `changes` | A change to an input shows in the signature. | | `gives` | A function whose value is used says what it gives back. | | `choices` | A choice is made once, in a place with a name. | | `nothing` | A call leaves something behind. | | `layers` | The packages of a part depend on one another in one direction. | | `lens` | What a lens puts, it gets back. | | `prophecy` | Code that is built does not lean on code that is not. | Each principle, with its reasoning, the idioms behind it and what each language lets Atlas trace, is in [principles.md](principles.md), with what each rule cannot see. A finding is a signal to look at the code and at what the rule claims, never a verdict and never a target: Atlas keeps what `atlas check` asks of itself as a reviewed list, each finding with why it stands. ## Revelation: what a design leaves to build A design can live in the tree as sketch code, marked as not built yet: a *prophecy*. Python marks it with a decorator, `@prophecy(supersedes="pkg.Old")` or `@prophecy()` (a no-op function in the project, in a module that imports nothing of the project; Atlas matches it by name), Rust with `#[doc = "prophecy: supersedes=pkg::Old"]`, TypeScript with a `@prophecy supersedes=pkg.Old` tag in the JSDoc before a `declare` function, class, interface or type. `veiled` says the place is known and the shape is not, `sealed="#144"` that the shape waits on an open question. A prophecy is a todo, not a finding: `atlas check` leaves its empty bodies alone, and asks about the built code that leans on it, because production would run on a stub. What a prophecy supersedes is still asked about, with the prophecy as the answer. `atlas revelation` lists every prophecy: what it supersedes, the bodies still to write, whether it is veiled or sealed, and the built code that leans on it. The sketch is done when the list is empty; a prophecy is fulfilled when its marker is gone. The page draws a prophecy in its own colour with a dotted border (finer when it is veiled), as a route of its own for each operation of it, and its inspector says what it supersedes and what supersedes a box. Agents ask the same with the MCP tool `revelation`. A prophecy whose shape waits on an open question is *sealed* on its issue (`sealed="#144"`, or `owner/repo#144`). `atlas revelation --seals` (the MCP tool `seals`) lists the seals, each with what `gh` says of its issue: open, closed (then the seal can be broken) or unknown, where there is no `gh`, no network or no such issue. The MCP tool `unseal` breaks them: it takes `sealed=..` out of the marker of the prophecies named, or of every one whose issue is closed, and changes nothing else. The files are left for you to commit; sketch the shape next. A vision that is decided becomes a prophecy with the MCP tool `prophetize`: the vision's files are written into the tree, every item the vision adds marked in the language of its file (and, for Python, the project's `prophecy` imported among the file's imports, and the bodies that ty would refuse made `raise NotImplementedError`; Atlas says so when the module that defines `prophecy` imports the file, since the import would go in a circle), and the vision is retracted. `supersedes` says which existing item an added one replaces. The files are left for you to commit; Atlas opens no branch. A vision that changes or removes what exists is refused, since writing it would replace built code with a sketch: the new item takes a new name and supersedes the old one. ## Changes: what an edit did `atlas changes []` reads the working tree against a git revision (`HEAD` by default) and lists what the edit did: the routes added and removed, the steps and places each route gains and loses, those it keeps whose own arrows differ (`~`, with what they were), the ordered compositions that differ, what changed on no route, and the findings it raises and resolves. It is read from the union `atlas view --since` draws, so the list holds what the picture marks. Changing call order or repeating a call changes a composition even when the route reaches the same functions. JSON records each such function with its `before` and `after` bodies under `compositions_changed`; each body retains its choices and dispatch. `atlas changes A..B` compares two revisions the same way (a side left out is `HEAD`, as in git). In a design loop, that is the question after every step: does the change do what it was meant to, and nothing else? A revision is read from git into a directory of its own; the working tree and the index stay as they are. ```text since HEAD ~ API · POST /api/regels - step server.regels.vat - place asks an LLM create ``` A function renamed with the same typed arrows is one step, changed: `~ step cli.draw: renamed from cli.plot · was plot(frame: Frame, out: Path) → None`. `atlas view --since ` draws the revision and the working tree as one picture (`--until ` draws two revisions): what both hold, drawn once, with what changed marked as a diff marks lines. - **Added** in B: a green border and `+`. - **Removed** in B: a red dashed border, the name struck through, `−`. - **Changed**: an amber border and `~`; the tooltip says what it was. A function is changed when its own arrow differs (what it takes and gives, what its own calls read and write, its usage line); a place or a value when the arrows into or out of it differ. A step a body gains or loses is marked itself, and a change marks only the step that changed, never what runs before or after it. A function renamed with the same relations is one function, changed, and reads `old → new`. The same marks go on the lines. The header names A and B, counts what was added, removed and changed, and switches between **A**, **A ∪ B** and **B**: a switch hides boxes and never moves one. The route list marks a route `+`, `−` or `~`. ## History: two commits as one picture `atlas history [repo]` serves the repository's history on this machine and opens it in the browser: the commits of every branch and tag, and beside them the picture of the one you pick, or of two you pick as one picture, marked as above. The working tree is the newest row. It answers at `127.0.0.1` only (`--port N` picks the port, `--no-open` leaves the browser closed), reads each commit once and keeps it from one run to the next, and reads the working tree again on every request, so an edit shows when you pick it again. ## Serve: one view, shared with your agent [The tour](https://raoulg.github.io/atlas/#point) shows what follows, drawn from one real run. `atlas serve [repo]` serves the picture of the working tree on this machine (`127.0.0.1`, `--port N`, `--no-open`), and shares it with the agent you work with through `atlas mcp`. Its terminal says that it runs and where, then a line for each thing worth knowing: the files that changed, the picture drawn, an export, a note, and what the agent did with it. - **The code as it is now.** The server looks at the files Atlas reads every second. When one changes, it draws the picture anew, and the page reloads to it in the view you had: the route, what you opened, the box you selected, the pinned ones and the zoom. While you write a note or a symbol to jump to, the page waits and the header says **the code changed ↻**. While nothing changes the picture is kept, so a reload is at once. - **What you have open.** The page tells the server its view, the box you selected, and the boxes and lines it draws. The agent reads them with `shown` when you say "this box". - **Look here.** The agent points the page at a view, a box or a line with `look`. The page goes there, opens the way to the box, selects it and makes it light up. - **What the agent says.** With `annotate` the agent puts its own words on a box or a line: what a condition means ("only on the first run"), what a step is for. A ✦ marks it; hover it for the words. They are the agent's statements, apart from what Atlas traces. - **A vision.** To ask "shall I do this?", the agent shows the change rather than describing it. With `vision` it gives the files the change would write, as sketch code: the signatures with their types and the calls in their order, bodies left empty. A sketch has to parse, not to build: Atlas reads it as it reads the code. The page draws the working tree (A) and the vision (B) as one picture, as the history draws two commits: what the vision adds, removes and changes is marked, and **A**, **A ∪ B** and **B** switch between them. A route that only one side has is drawn whole, and only what the code adds or removes in it is marked: the steps and types it reuses stay as they are. Point at what you think of it with a note. The working tree stays as it is; once the vision is decided, the agent retracts it. - **Notes.** Alt-click a box or a line to write a note on it ("I do not understand this line"). The ring on it is open until the agent reads it, dimmed once it has, and a ✓ once it resolves it. The agent resolves a note where it works with you, by a fix or by explaining; Atlas is no chat, and reading a note does not resolve it. Hover the ring for the notes, and for the commit that fixed one, if one did. Alt-click a box with a resolved note to open it again with what is still unclear. A note is for the work at hand: a resolved note stays on the picture while this `atlas serve` runs, and the next one starts without it. What must last, the agent puts in an issue, with a link to the note's place that opens it in `atlas serve` (each repository is served at a port of its own, the same each time). Esc, the field's ✕ or a click beside it drops a note before it is kept. - **History.** **history** opens the commits beside the page, as `atlas history` does, from the same process. Pick a commit to see it beside the working tree, or two to see as one; **✕ close history** goes back to the page. - **Export.** **export** keeps the picture as one HTML file, opened in the view you have: the file `atlas view` writes. What the page and the agent share is kept in `.atlas/` (`shown.json`, `look.json`, `notes.json`, `serving.json`, `vision.json`, `annotations.json`), so the two need not run together, and git never sees it. ## What Atlas keeps What does not change is kept between readings, in `$XDG_CACHE_HOME/atlas` (else `~/Library/Caches/atlas` on macOS, `%LOCALAPPDATA%\atlas` on Windows, `~/.cache/atlas`), a directory per build of Atlas: - what ty says of a file of an installed Python library, by the file's bytes and the environment it is read in: the distributions installed, the `.pth` files, the Python ty reads with, and the names the project's own modules take before a library's; - the parts of a commit, for `atlas changes`, `atlas view --since` and `atlas history`, while what the reading took from outside the commit (a crate by its path, a fetched crate, the environment beside the repository) stands as it did. The working tree is read anew every time, and so are the crates and packages it reads: their code is linked together with yours. What is kept is what a reading anew gives, so the picture is the same either way. `--no-cache` reads everything anew and keeps nothing. ## Give your coding agent the same picture `atlas mcp` serves Atlas over the [Model Context Protocol](https://modelcontextprotocol.io). The tools are `principles`, `check`, `explain`, `routes`, `route`, `choices` and `changes`; `route` returns what one entry point does, step by step, `choices` the choices it makes with what decides each branch, and `changes` what the working tree did since a commit (or, with `until`, what one commit did against another), so an agent can check its edit against what it was meant to do. Register it once, for every project, in [Claude Code](https://claude.com/claude-code) and in [Codex](https://openai.com/codex): ```bash claude mcp add --scope user atlas -- atlas mcp codex mcp add atlas -- "$(command -v atlas)" mcp ``` Claude Code's `--scope user` makes it available in every project. Codex keeps its servers in one configuration for all projects and starts them without your shell's `PATH`, so it is given the binary's full path, which `command -v atlas` prints. The server works on the repository the agent runs in, so `atlas serve` in any repository is all it takes. Any other MCP client takes the same command: `{"command": "atlas", "args": ["mcp"]}`, with the full path where the client does not pass on your `PATH`. ## Keep the picture in your README current A GitHub workflow can draw the page and its picture on every push and publish them on GitHub Pages, so the README always shows the code as it is; a commit hook does the same before every commit. The workflow needs nothing installed on your own machine. [The how-to](ci.md) has the workflow, the hook and the script that takes the picture.
